40kW Mobile DC EV Charger
Mobile Charger
This series of charging piles is composed of inteligent and effhcient modules, main control unit. human-computer interaction interface, charging interface and other parts. The friendly human-computer interaction interface is convenient for users to operate and use. The modular design facilitates long-term maintenance of the equipment; multiple charging modes and protection functions Complete, suitable for a variety of places for rapid emergency response and testing toreplenish electrical energy.
APP
OCPP1.6J
Over current
protection
Over Temperature
Protection
Current leak protection
Lightning protection
Voltage fluctuation
protection
Over voltage
protection
-
——
Maximum Output Power
40KW
——
DC Output Voltage Range
200~750VDC
——
Max. Output Current
60A
——
Charging Standard
CCS Type 2
——
Efficiency
Above 95%
——
Protection Class
IP55
——
Net Weight
140KG
——
Dimension (H x W x D)
1277 x 848 x 576mm
——
Cable Length
5m
——
Communications Interface
CAN, 485, 4G or Ethernet
——
Backstage Monitoring
OCPP1.6 JSON support
——
Application Scenario
Floor-mounted/ Wall-mounted
IP55
Short circuit
protection
(40kW)
1.5
Full Charged
hour
(Battery capacity 60kw)
Electric vehicle
Mobile electric vehicle charging
DC fast charging technology made portable
Truly portable with robust castors for quick and easy movement; Hot-swappable CHAdeMO, CCS and GB/T charging cables for flexible multi-protocol charging.

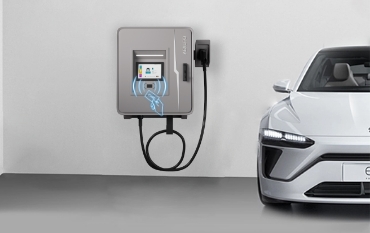

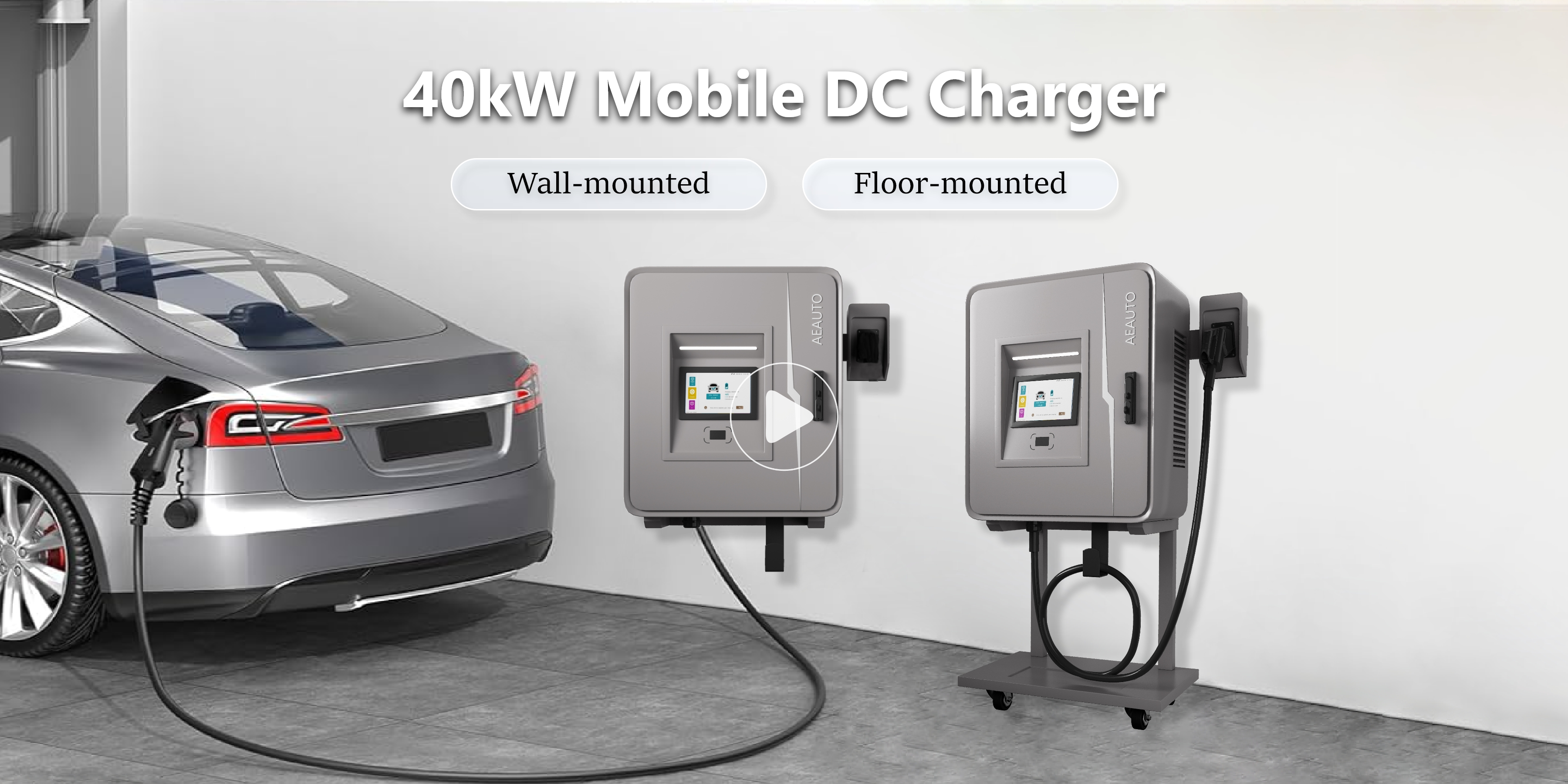

*Wall-mouned or floor-mounted are both available.
3 Start Starting Methods
Smart starting
Connectivity-enabled seamless smart charging charge experience; Remote scheduling and real-time charging status checking.
*Customized by the clients
RFID Swiping
Avoid theft charging
APP Control
Just move your fingers
OCPP
Manage and Monitor
