EV Powerbank
——
Charging Power Rate
180KW
——
Output Voltage Range
200-750V
——
Max. Output Current
200A
——
Storage Battery Capacity
186.71 kWh
——
Weight
<3500KG
——
Max. Power Rate
300~750V
——
Input Voltage Range
AC: 400VAC±10%,50/60Hz
DC: 250VDC~ 800VDC
——
Dimension (LxWxH)
5450×2190×1903 mm
——
Noise (dp(A))
<65@1m
——
Working Temperature
-20~+55℃
——
Working Humidity
5%~95% no condensation
——
Working Altitude
2000m
——
Protection Level
IP55
——
Cooling Method
charger: Air cooling
Battery: Liquid cooling

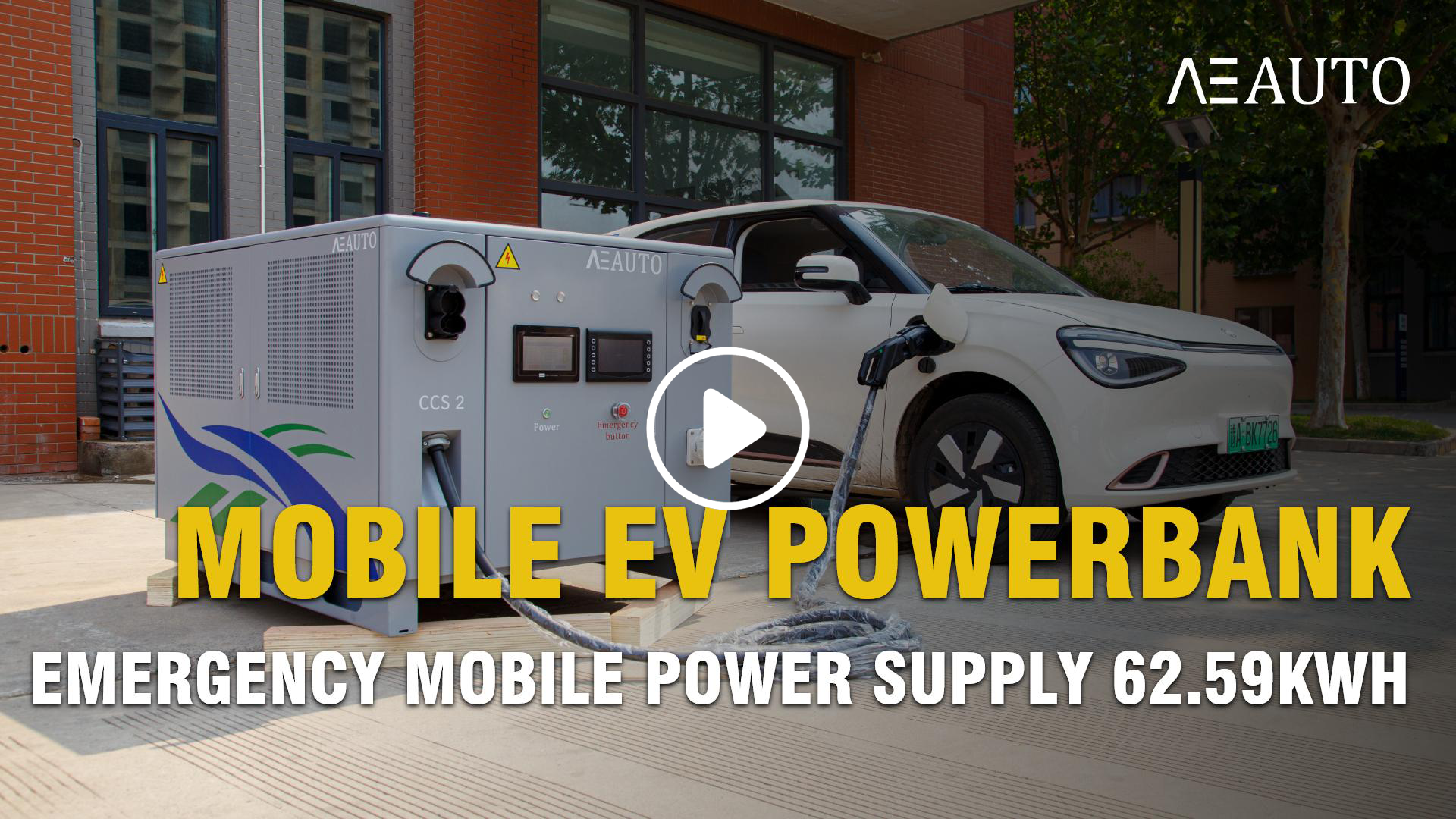

EV Powerbank
EV Powerbank

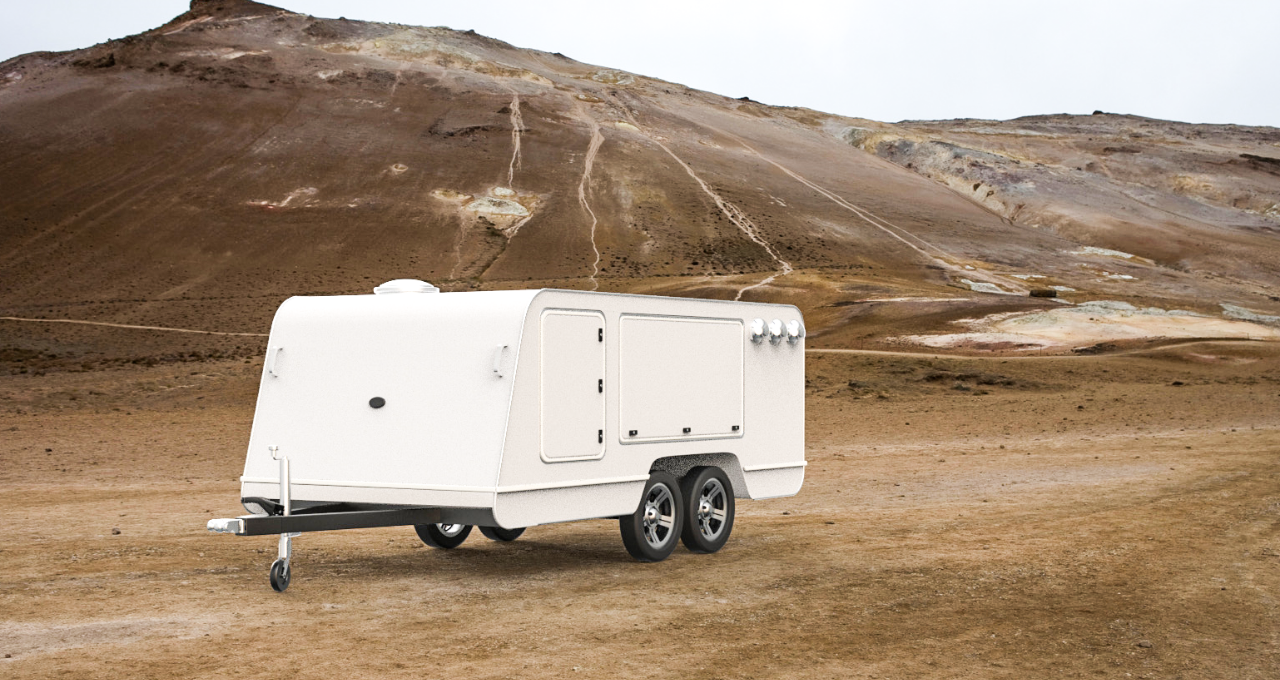

Trailer type mobile power supply
Emergency power supply
Energy storage + Charging
Mobile charging units for commercial and consumer electric vehicles are designed, engineered and proven to be the ideal solution for DC fast charging of trucks, vans, buses and cars in remote locations, special events and warehouses.
Reduce range anxiety: For commercial vehicle fleets or long-distance travel customers, driving an electric vehicle and dragging a power bank can increase the cruising range.
Emergency rescue and value-added services: As an emergency power bank, if the customer's pure electric vehicle runs out of power while driving, it can provide rescue charging and provide value-added services to customers.
Photovoltaic external energy storage battery: European customers use this as an energy storage battery for photovoltaic solar panels. The electricity can be used at home and can also be used to charge vehicles at home.
186.71 kwh
Modular energy storage confguration optional
Vehicle charging
System failure alarm
Control protection
Green energy storage
Data function
DC fast charging 180kW Range DC200-750V Escort for all kinds
of vehicles.
Detect input/output overvoltage,
undervoltage and other working conditions, disconnect input/output.
Power-on cycle detection
Output alarmevent information.
Adopt battery energy storage system tomeet the requirements of green and low-carbon construction.
Ontology saves running records Cloud big data analysis is optional.
