DC Output Power
60KW~160KW
——
DC Output Voltage Range
CCS: 200 – 1000VDC
CHAdeMO: 200 – 500VDC
——
DC Output Current Range
CCS: 0 – 200A
CHAdeMO: 0 – 125A
——
AC Output Power
22kW max
——
AC Output Current
3-phase 32A max
——
Input Voltage
400Vac +/-10%
50/60Hz, 3-phase + N + PE
——
Input Current
0 - 250A
——
Net weight
370KG
——
Dimension (H x W x D)
1880 x 580 x 750mm
——
Cable Length
5m
——
Protection Class
IP55
——
Communications Interface
CAN, 485, 4G or Ethernet
——
Backstage Monitoring
OCPP1.6 JSON support
-
——
Maximum Output Power
40KW
——
DC Output Voltage Range
200~750VDC
——
Max. Output Current
60A
——
Charging Standard
CCS Type 2
——
Efficiency
Above 95%
——
Protection Class
IP55
——
Net Weight
146KG
——
Dimension (H x W x D)
1277 x 848 x 576mm
——
Cable Length
5m
——
Communications Interface
CAN, 485, 4G or Ethernet
——
Backstage Monitoring
OCPP1.6 JSON support
-
——
Maximum Output Power
20KW
——
DC Output Voltage Range
200~750VDC
——
Max. Output Current
26.7A
——
Charging Standard
CCS Type 2
——
Efficiency
Above 95%
——
Protection Class
IP55
——
Net Weight
58KG
——
Dimension (H x W x D)
782 x 472 x 312mm
——
Cable Length
5m
——
Communications Interface
CAN, 485, 4G or Ethernet
——
Backstage Monitoring
OCPP1.6 JSON support
-
——
Input Voltage
AC220V±15%
——
Input Frequency
50HZ
——
Rated Power
7KW /11KW /22KW
——
Rated Output Current
32A
——
Dimension(H x W x D)
350 x 100 x 175mm
——
Charging Groups
Single Shot
——
Cable Length
5m
——
Protection Class
IP65
——
Communications Interface
CAN, 485, 4G or Ethernet
——
Installation Method
Wall-mounted/ Floor-mounted
——
Backstage Monitoring
OCPP1.6 JSON
-
——
Charging Power Rate
180KW
——
Output Voltage Range
200-750V
——
Max. Output Current
200A
——
Storage Battery Capacity
186.71 kWh
——
Weight
<3500KG
——
Max. Power Rate
300~750V
——
Input Voltage Range
AC: 400VAC±10%,50/60Hz DC: 250VDC~ 800VDC
——
Dimension (LxWxH)
5450×2190×1903 mm
——
Noise (dp(A))
<65@1m
——
Working Temperature
-20~+55℃
——
Working Humidity
5%~95% no condensation
——
Working Altitude
2000m
——
Protection Level
IP55
——
Cooling Method
charger: Air cooling
Battery: Liquid cooling
EV Charger
Internet of Vehicles
Internet of Things Technology
CMS
Charging pile charging intelligent management
Automatic Identification
Vehicle automatic identification technology,Identify authorized vehicles, plug and charge
Safety
Electrical protection, insulation testing, safety invention patent
60-160kW DC Charger Floor-mounted

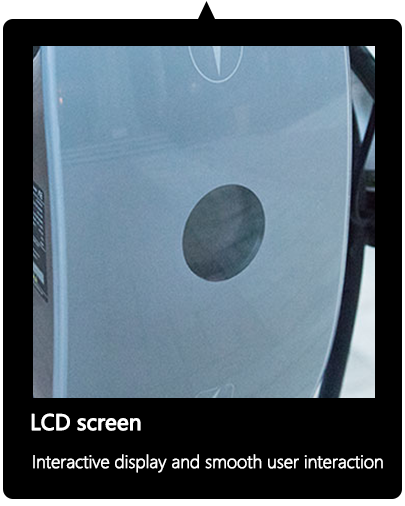

LCD screen

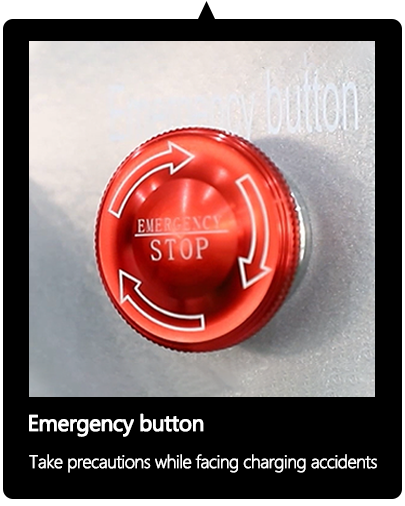

Emergency button

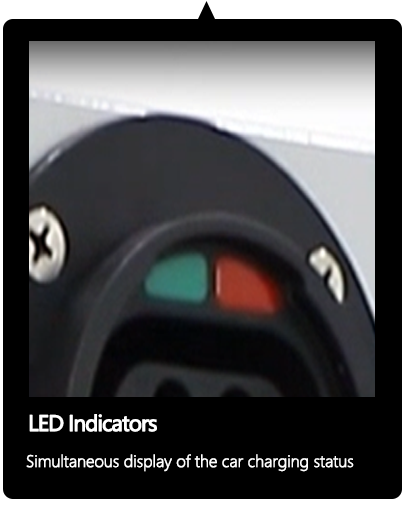

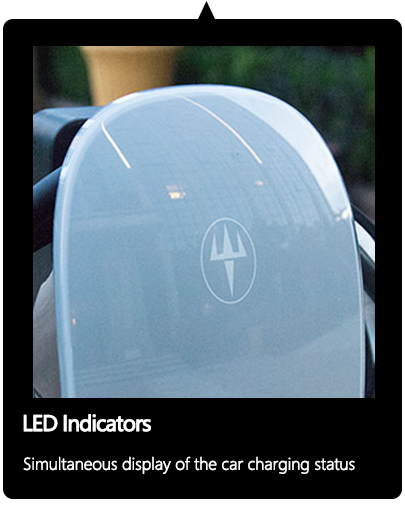

LED Indicators

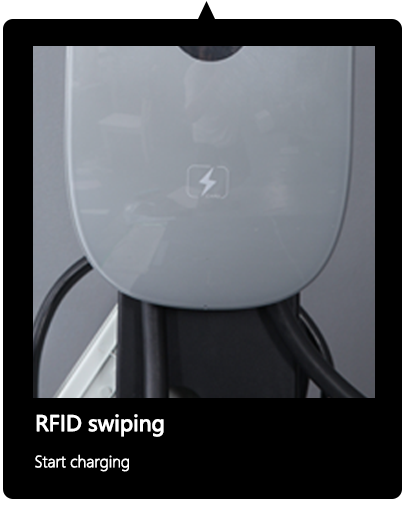

RFID swiping
Optional plug placement
LED Indicators
LCD screen
RFID swiping

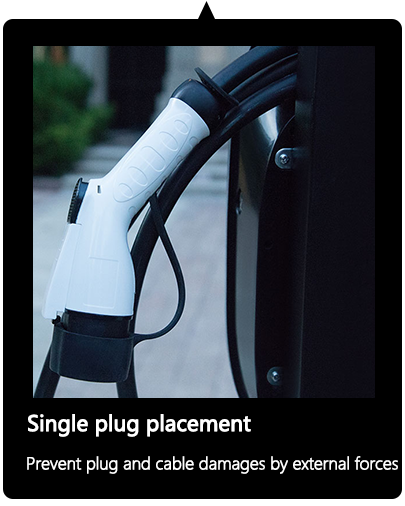

Single plug placement
Bottom caster

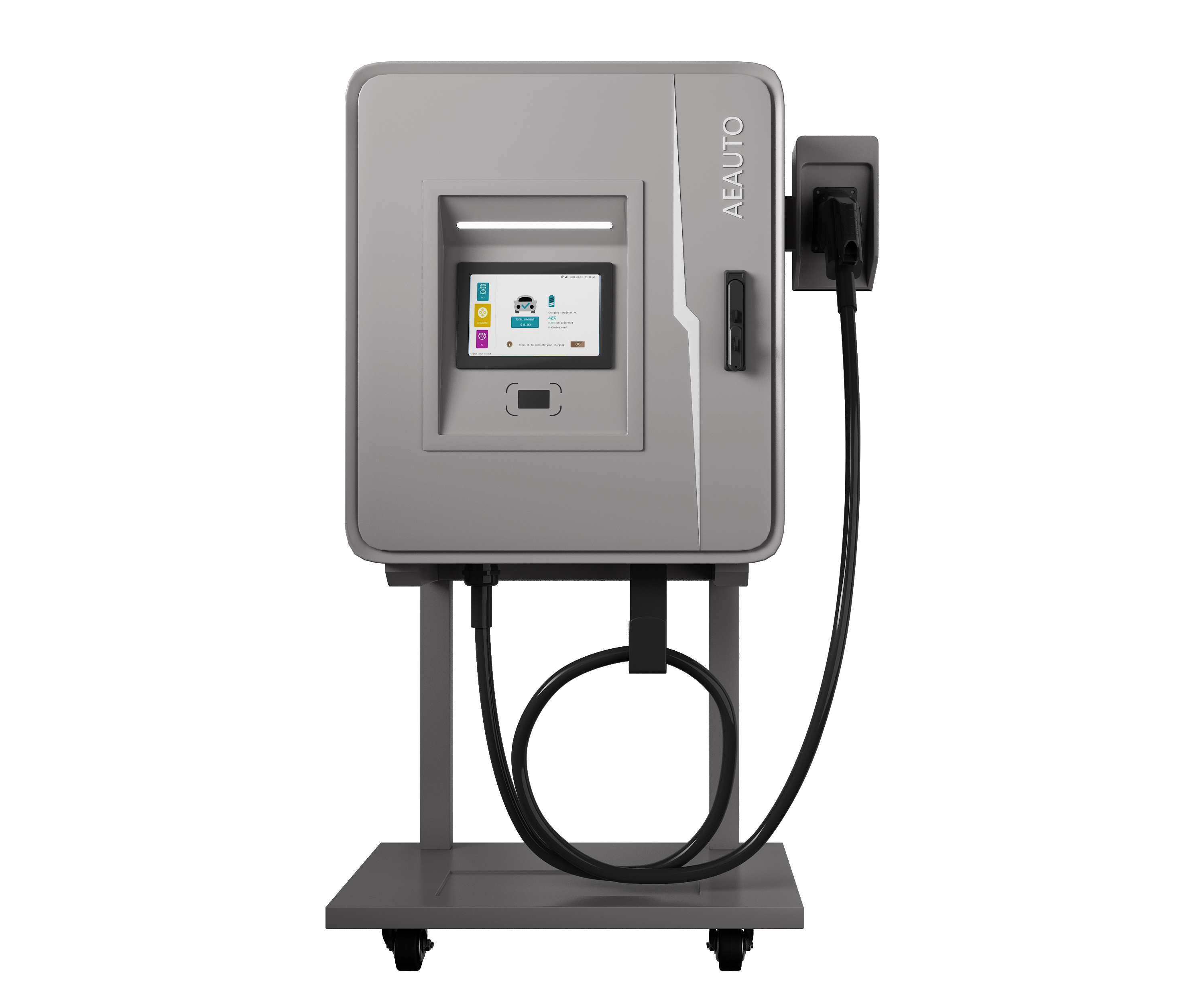

DC Movable Charging
Portable and Movable
40kw fast charging
40kW Mobile DC Charger
Wall / Floor-mounted
EV Charger
20min Charging,400km Driving
97% high efficiency
APP/OCPP/RFID
SOLAR/V2G
20kW Portable Charger
DC Movable Charging
Portable and Movable
20kw fast charging
LCD screen

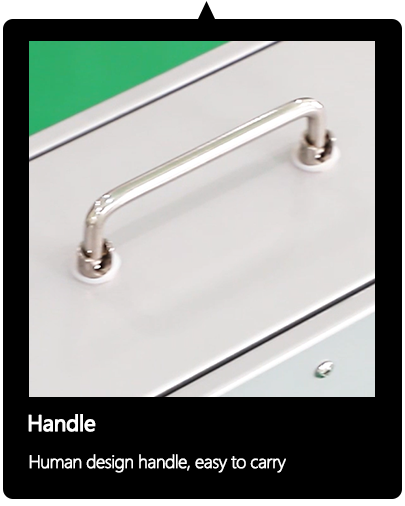

Handle
LED Indicators
Emergency button

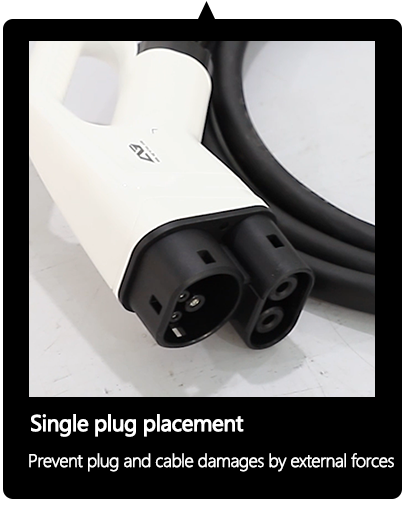

Single plug placement
7/11/22kW AC Charger
Wall/ Floor-mounted
RCD:TypeA、Type B(Opt)
Suitable leakage switch type can be selected independently
Temperature Monitoring
Once the temperature is exceeded, it will stop working immediately,and the charging system can be auto-resumed when the temperature returns to normal
Automatically Repair Faults
Smart chip can automatically repair common charging mistakes to ensure stable operation of the production
LCD Screen
RFID Swiping
Pillar Stand

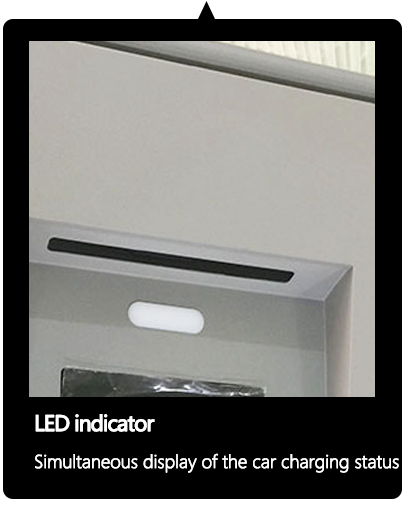

LED Indicator light

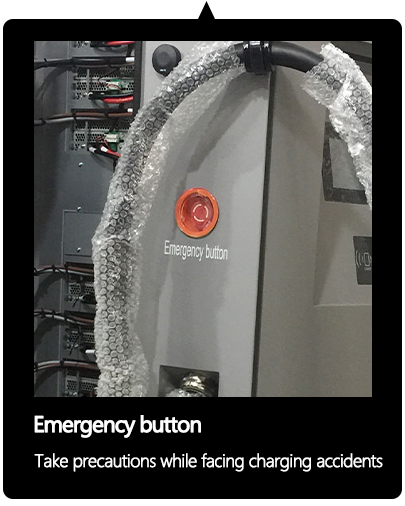

Emergency Stop Button
Single Plug
Charger pal

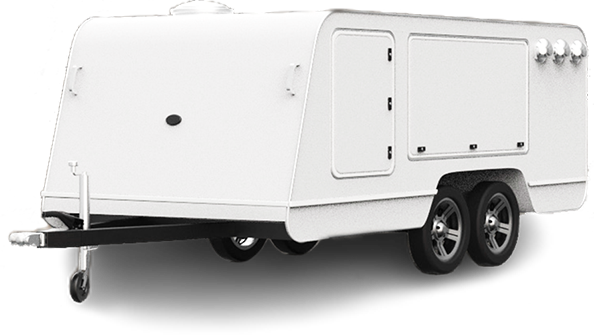

Trailer type mobile power supply
Supply Emergency power supply
Supply Energy storage + Charging
